Reliability of Omniview-VCI for pelvic hiatal area measurement under contraction and Valsalva’s maneuver in women with and without symptoms of pelvic floor dysfunction

Elisa Montaguti*, Giuseppina Pacella*, Ginevra Salsi *, Olimpia Sanlorenzo*, Gianluigi Pilu*, Nicola Rizzo*, Aly Youssef*
* Department of Obstetrics and Gynecology, Sant’Orsola-Malpighi Hospital, University of Bologna, Italy

Objectives: To assess the reproducibility of the technique “Omniview-Volume contrast imaging (Omniview-VCI, GE Healthcare)” for the measurement of pelvic hiatal area in women with and without symptoms of pelvic floor dysfunction under contraction and during Valsalva’s maneuver. In addition, we aimed to study the intermethod agreement with 3D rendering method.
Methods: We enrolled 34 women with symptoms of pelvic floor dysfunction and 34 women without any symptoms as control. For each women we acquired a static 3D ultrasound transperineal volume and two dynamic volumes under contraction and during Valsalva’s maneuver. Each 3D dataset was analyzed by means of the Omniview-VCI technique to measure the pelvic hiatal area, twice by an operator and once by another in order to assess intra- and interobserver reproducibility. We then measured hiatal area using 3D rendering method to evaluate inter-method agreement. Reproducibility and inter-method agreement were studied by means of intraclass correlation coefficient (ICC) and Bland-Altman method.
Results: Hiatal area measurements by Omniview-VCI technique showed high intraobserver and interobserver reproducibility not only as regarding static measurement, as previously demonstrated, but also in dynamic acquisitions. In addition, a high agreement was demonstrated between the new technique and 3D rendering in both contraction and Valsalva’s maneuver.
Conclusions: Omniview-VCI is a reliable method for pelvic hiatal area measurement even during contraction and Valsalva’s maneuver.

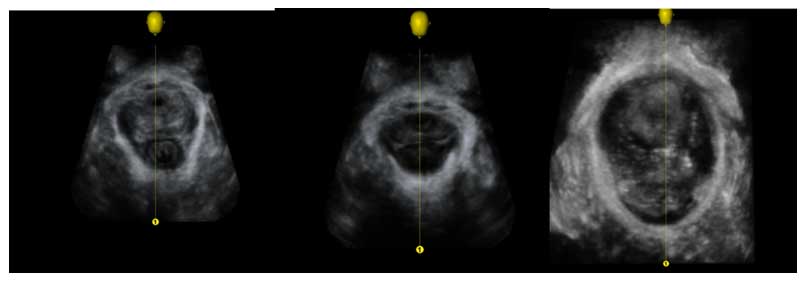

Figure: Omniview-Volume Contrast Imaging (VCI) technique visualizing pelvic hiatal area at rest, during contraction and during Valsalva’s maneuver in a nulliparous asymptomatic woman.


  1. Dietz HP, Wong V, Shek KL. A simplified method for determining hiatal biometry. Aust N Z J Obstet Gynaecol 2011; 51: 540-543.
  2. Kruger JA, Heap SW, Murphy BA, Dietz HP. How best to measure the levator hiatus: evidence for the non-Euclidean nature of the 'plane of minimal dimensions'. Ultrasound Obstet Gynecol 2010; 36: 755-758.
  3. Dietz HP. Pelvic floor ultrasound: a review. Am J Obstet Gynecol; 202: 321-334.
  4. Rankin G, Stokes M. Reliability of assessment tools in rehabilitation: an illustration of appropriate statistical analyses. Clin Rehabil 1998; 12: 187-199.
  5. Bland JM, Altman DG. Applying the right statistics: analyses of measurement studies. Ultrasound Obstet Gynecol 2003; 22: 85-93.
  6. Bland JM, Altman DG. Measuring agreement in method comparison studies. Stat Methods Med Res 1999; 8: 135-160.
